Key Features and Benefits:

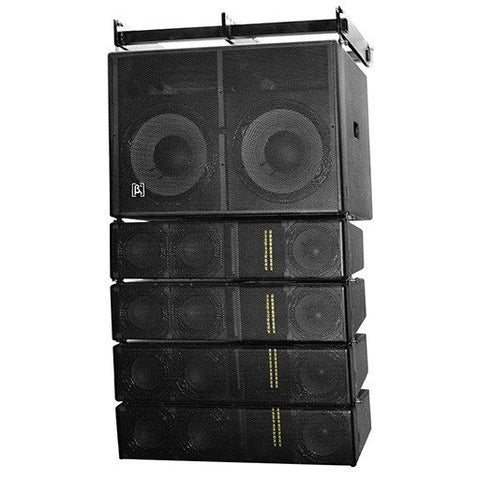

- The system comprises of 4 x R6 mid/high boxes consisting of 1 x Ribbon, 1 x 6.5” MF and 2 x 6.5” LF drivers per cabinet, and 1 x R12 Subwoofer cabinet comprising of 2 x 12” LF drivers
- 2 x NL4 input and output connectors on each cabinet
- For optimum performance use with a Beta Three® a digital speaker management processor
- Integrated rigging and speaker cabling included for the system
- Rigging allows adjustment of R6 in 1° increments
- Designed for high speech intelligibility and natural sounding music
- Suitable for use as a main system with or without sub speaker augmentation
- Permanent installation
- Powder coated grill
- Durable Polyurethane textured base paint
- Available in either black or white
Construction:
- R6: 15mm Birch Plywood
- R12:18mm Birch Plywood
Transducers:
- R6: 1 x Ribbon HF + 1 x 6.5” MF + 2 x 6.5” LF
- R12: 2 x 12” LF
Frequency Response (-3dB):
- R6: 50Hz-20kHz
- R12: 45Hz-300Hz
Rated Power:
- R6: 140W (RMS), 280W (Program), 560W (Peak)
- R12: 900W (RMS), 1800W (Program), 3600W (Peak)
Sensitivity (1W @ 1m):
- R6: 98dB
- R12: 92dB
Maximum SPL (1W @ 1m):
- R6: 116dB/122dB (Peak)
- R12: 122dB/128dB (Peak)
Rated Impedance:
- R6: 8Ω
- R12: 4Ω
Dispersion (H x V ): 120° x 30°
Connector:
- R6: 2 x NL4
- R12: 2 x NL4
Net Dimensions:
- R6: 6.9″ x 14.3″ x 28.7″
- R12: 20.1″ x 24.8″ x 28.7″
Net Weight:
- R6: 37.4 lbs.
- R12: 110 lbs.
Gross Dimensions:
- R6: 10.2″ x 20.1″ x 33.1″
- R12: 26.4″ x 30.9″ x 34.3″
- Flying Frame: 32″ x 7.7″ x 29.1″
Gross Weight:
- R6: 42 lbs.
- R12: 121 lbs.
- Flying Frame: 30 lbs.
