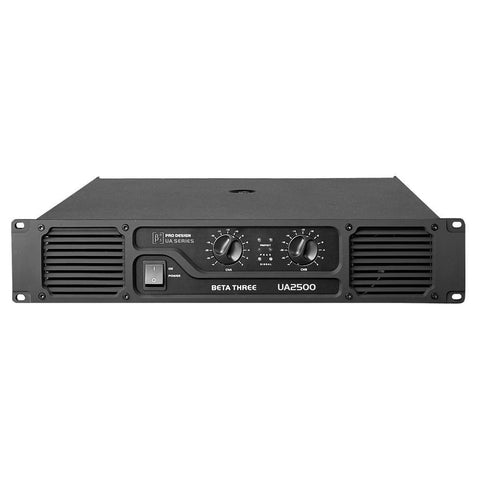

The UA Series 2U professional amplifiers have been engineered for reliability for where full power is required for extended times in fixed installations or portable applications.
Key Features and Benefits:
- Housed in a rugged, all-steel 2U chassis
- Rear panel selection switch for Stereo, Parallel and Bridged modes, including Low-cut filter, Ground lift and Limiter switches
- Operates within 8Ω and 4Ω loads
- Innovative heatsink with front to back air flow for efficient cooling
- Variable fan speed is automatically adjusted by temperature
- Electronically balanced XLR inputs
- Touch proof binding post and Speakon outputs
- Precision indented level controls and power switch
- Protect, Peak and Signal LEDs indicators for each channel
- Amplifier protection includes short circuit, excessive temperature, and DC on outputs
Rated Power (Stereo 8 Ω): 2 x 1250W
Rated Power (Stereo 4 Ω): 2 x 2000W
Rated Power (Bridge 16 Ω): 2400W
Rated Power (Bridge 8 Ω): 3600W
Rated Power (Parallel mono 8 Ω): 1250W
Rated Power (Parallel mono 4 Ω): 2000W
Input Sensitivity: 1V
S/N Ratio (A Weight): >108dB
Frequency Response (+0/-0.25dB): 20Hz-20kHz
Damping Factor: >800 @ 8ohm/100Hz
THD (10% Rated Power): <0.05%
Input Connector: 2 x XLR, 2 x 6.5mm TRS
Input Impedance: Balanced 20kΩ, Unbalanced 10kΩ
Output Connectors: 2 x NL4 + 4 x Binding post
Cooling: 4 x fans, airflow from front to back
Net Dimensions: 19″ x 17.8″ x 3.5″
Net Weight: 66.1 lbs.
Gross Dimensions: 21.7″ x 21.3″ x 6.9″
Gross Weight: 70.5 lbs.
