This compact active line array loudspeaker system is used in applications including sound reinforcement for houses of worship, events, theme parks, multi-functional auditoriums, schools, and transit terminals, etc. The R Series compact active line array system delivers extraordinary performance where high speech intelligibility and natural sounding music is required at unmatched value.
Key Features and Benefits:

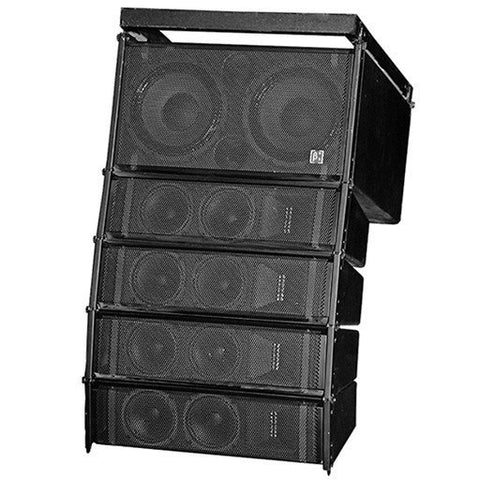

- The system comprises of 4 x R4 mid/high boxes consisting of 1 x Ribbon and 2 x 4” drivers per cabinet and 1 x R8 Subwoofer cabinet comprising of 2 x 8” drivers
- Built-in power amplifier module and DSP speaker processing within the R8
- The DSP includes PEQ, Crossover and Slope, Delay, Gain and Limiter and is programable via either RS232 or USB by PC
- RS485 allows multiple systems to be connected together for control
- Software included
- Master volume control
- XLR input and output connectors
- Integrated rigging and speaker cabling included for the system
- Rigging allows adjustment of R4 in 1° increments
- Designed for high speech intelligibility and natural sounding music
- Suitable for use as a main system with or without sub speaker augmentation
- Permanent installation
- Powder coated grill
- Durable Polyurethane textured base paint
- Available in either black or white
- Up to 4 systems can be arrayed
Construction: 15mm Birch Plywood
Transducers:
- R4: 1 x Ribbon Driver HF + 2 x 4” MF
- R8: 2 x 8” LF
Frequency Response (-3dB): 50Hz-40kHz
Rated Power:
- 4 x 75W HF (RMS)
- 1 x 300W LF (RMS)
Amplifier Type: Class H
Maximum SPL (1W @ 1m): 115dB/121dB (Peak)
Input Impedance: Balanced 20kΩ, Unbalanced 10kΩ
Rated Impedance: 8Ω
Dispersion (H x V ): 120° x 30° – 90°
Connector:
- R8: XLR Line Input/Output
- XLR RS485 Input/Output
- 2 x NL4 Output
- R4: 2 x NL4
Net Dimensions: 8.7″ x 24″ x 35.5″
Net Weight: 99 lbs.
Gross Dimensions: 22.8″ x 27.4″ x 27.4″
Gross Weight: 110 lbs.
