Features:

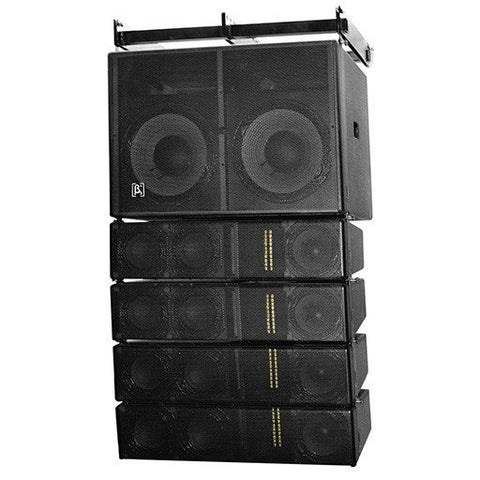

- The system comprises of 4 x R6 mid/high boxes consisting of 1 x Ribbon, 1 x 6.5” MF and 2 x 6.5” LF drivers per cabinet, and 1 x R12 Subwoofer cabinet comprising of 2 x 12” LF drivers
- Stable 3000W amplifier module
- 2 x NL4 input and output connectors on each cabinet
- For optimum performance use with a Beta Three® a digital speaker management processor
- Integrated rigging and speaker cabling included for the system
- Rigging allows adjustment of R6 in 1° increments
- Designed for high speech intelligibility and natural sounding music
- Suitable for use as a main system with or without sub speaker augmentation
- Permanent installation
- Powder coated grill
- Durable Polyurethane textured base paint
- Available in either black or white
Construction:
- R6II: 15mm Birch Plywood
- R12a: 18mm Birch Plywood
Transducers:
- R6II: 1 x Ribbon HF + 1 x 6.5” MF + 2 x 6.5” LF
- R12a: 2 x 12” LF
Frequency Response (-3dB):
- 40Hz-20kHz
Rated Power: 1500W RMS, 3000W Music, 6000W Peak
Maximum SPL: 124dB/130dB (Peak)
Input Impedance (Line): 20k 8Ω balanced imput
Dispersion (H x V ): 90° x 10° Connector:
- R6II: NL4
- R12a: XLR for input, XLR for output
Dimensions:
- R6II: 16.5″ x 8.3″ x 29″
- R12a: 29″ x 26.3″ x 21.3″
Net Weight:
- R6II: 38.5 lbs
- R12a: 115.5 lbs
Packing Dimensions (1 Piece/Pack):
- R6II: 19.9″ x 12.2″ x 34.5″
- R12a: 32.1″ x 25.8″ x 34.5″
- Flying Frame: 30.7″ x 8.9″ x 34.3″
Gross Weight:
- R6II: 45.1 lbs
- R12a: 129.8 lbs
- Flying Frame: 31.9 lbs
