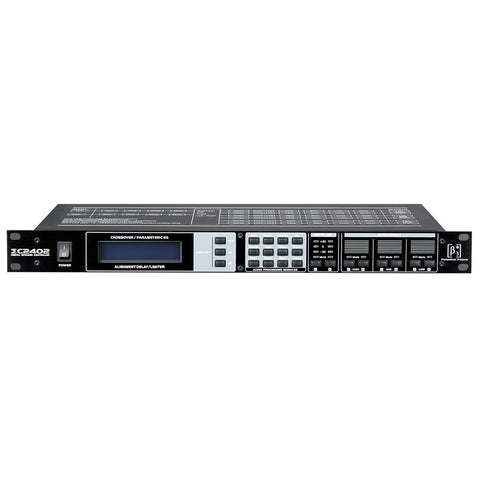

The ΣC2402 is a 1U integrated speaker management processor. This device is easily programmable to meet all small installation applications.
Key Features and Benefits:
- Integrated speaker management processor
- Three-way stereo or six-way mono crossover
- 32 bit floating point DSP and digital filter
- 2 x input XLRs + 6 x Output XLRs
- Front panel programmable
- Provides input selection, gain control, delay, crossover, equalization and limiter functions
- DSP – 48kHz sample rate with 24bit AD/DA processing
- Front panel input and output LED indicators
- Store up to 20 presets
Input Connector: 2 x Balanced XLR
Output Connector: 6 x Balanced XLR
Input Impedance: Balanced 10kΩ<
Maximum Output Levels: + 20dBu
A/D Sampling Frequency: 48kHz-24bit linear
Dynamic Range (A Weight): 110dB
Net Dimensions: 19″ x 6.8″ x 1.8″
Net Weight: 6.6 lbs
Gross Weight: 9 lbs
